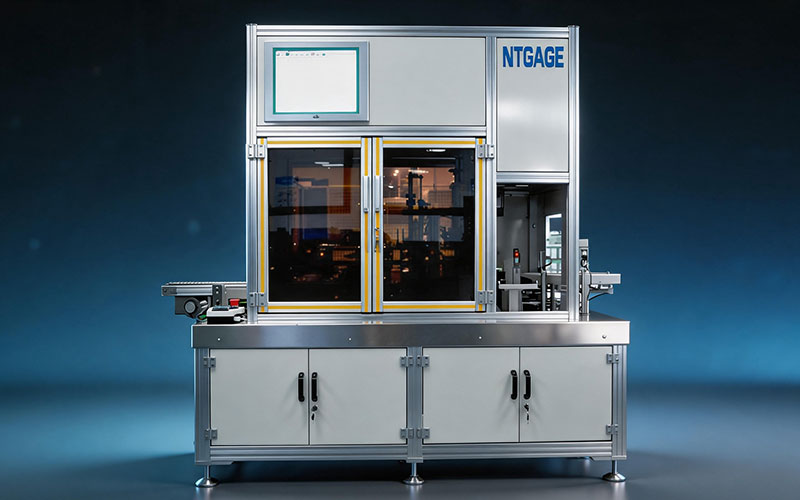

Piston Measuring Machine
Test Items
Skirt diameter
Ring-groove diameter
Pin-bore diameter
Compression height
Ring-groove diameter
Pin-bore diameter
Compression height
Product Features
1. Pin bore diameter repeatability : ≤0.8 μm
2. Outer circle diameter repeatability : ≤2 μm
3. Compression height repeatability :≤5 μm
4. Measurement cycle: ≤10 s per workpiece
2. Outer circle diameter repeatability : ≤2 μm
3. Compression height repeatability :≤5 μm
4. Measurement cycle: ≤10 s per workpiece
