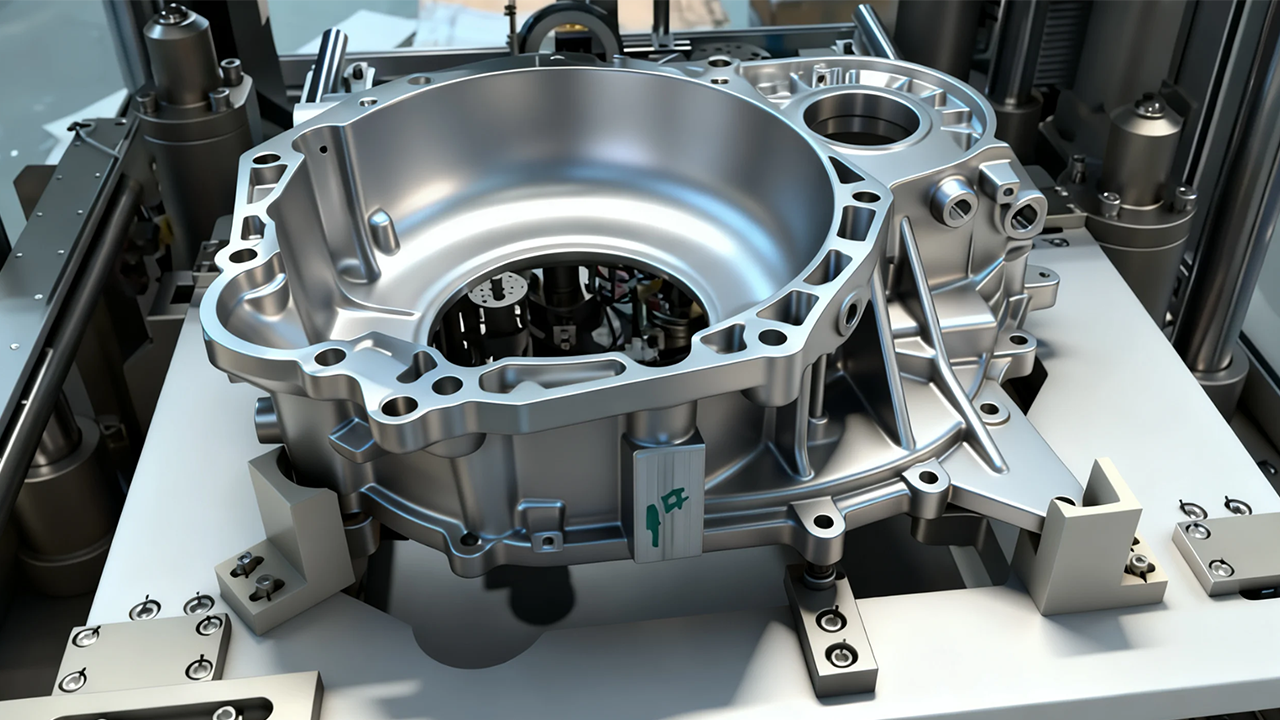

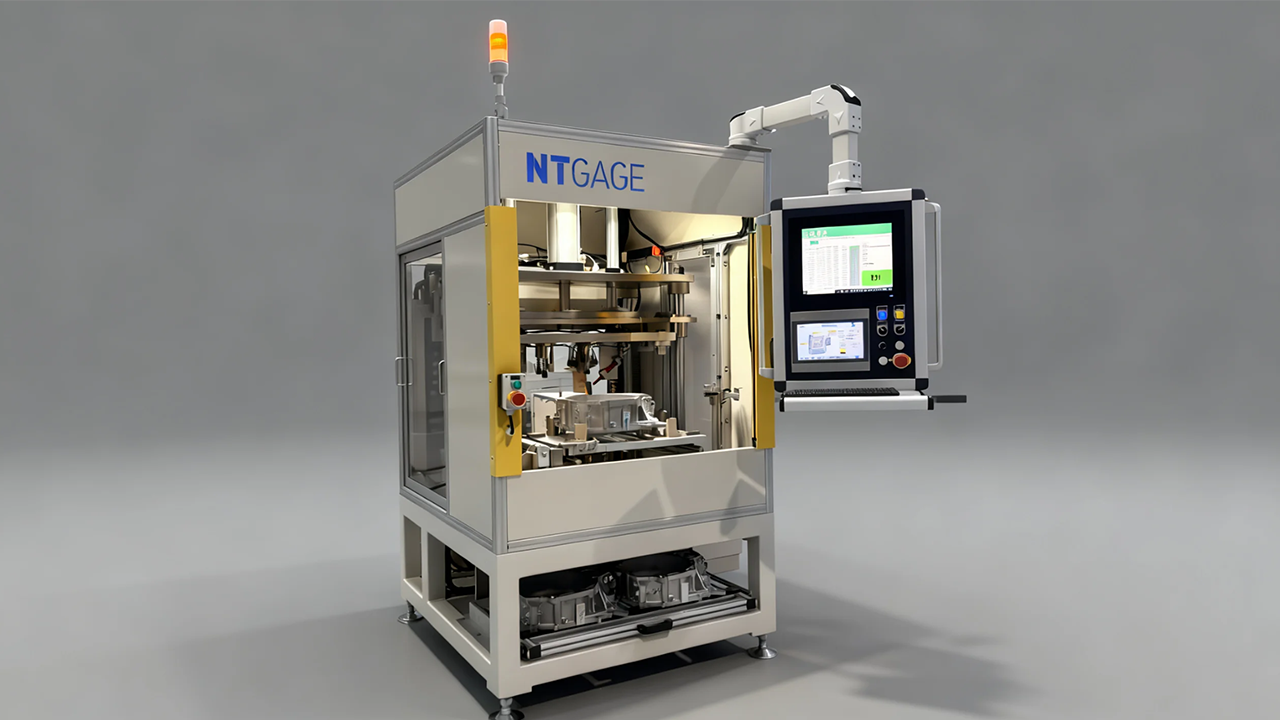

Transmission Housing Measuring Machine
Test Items
Pin-hole diameter
Bearing hole depth
Each main bearing bore diameter
Distance between upper and lower end faces
Parallelism of upper and lower end faces
Flatness of mating surface
Bearing hole depth
Each main bearing bore diameter
Distance between upper and lower end faces
Parallelism of upper and lower end faces
Flatness of mating surface
Product Features
1.One-click measurement; inspection cycle＜60S.
2.Fitted with automatic barcode scanner for data-QR-code binding and scanning based grading.
3.Positioning unit equipped with air-check mechanism to prevent uneven positioning.
4.Rigid machine frame with upper and lower mold closing positioning for high repeat positioning accuracy.
2.Fitted with automatic barcode scanner for data-QR-code binding and scanning based grading.
3.Positioning unit equipped with air-check mechanism to prevent uneven positioning.
4.Rigid machine frame with upper and lower mold closing positioning for high repeat positioning accuracy.
